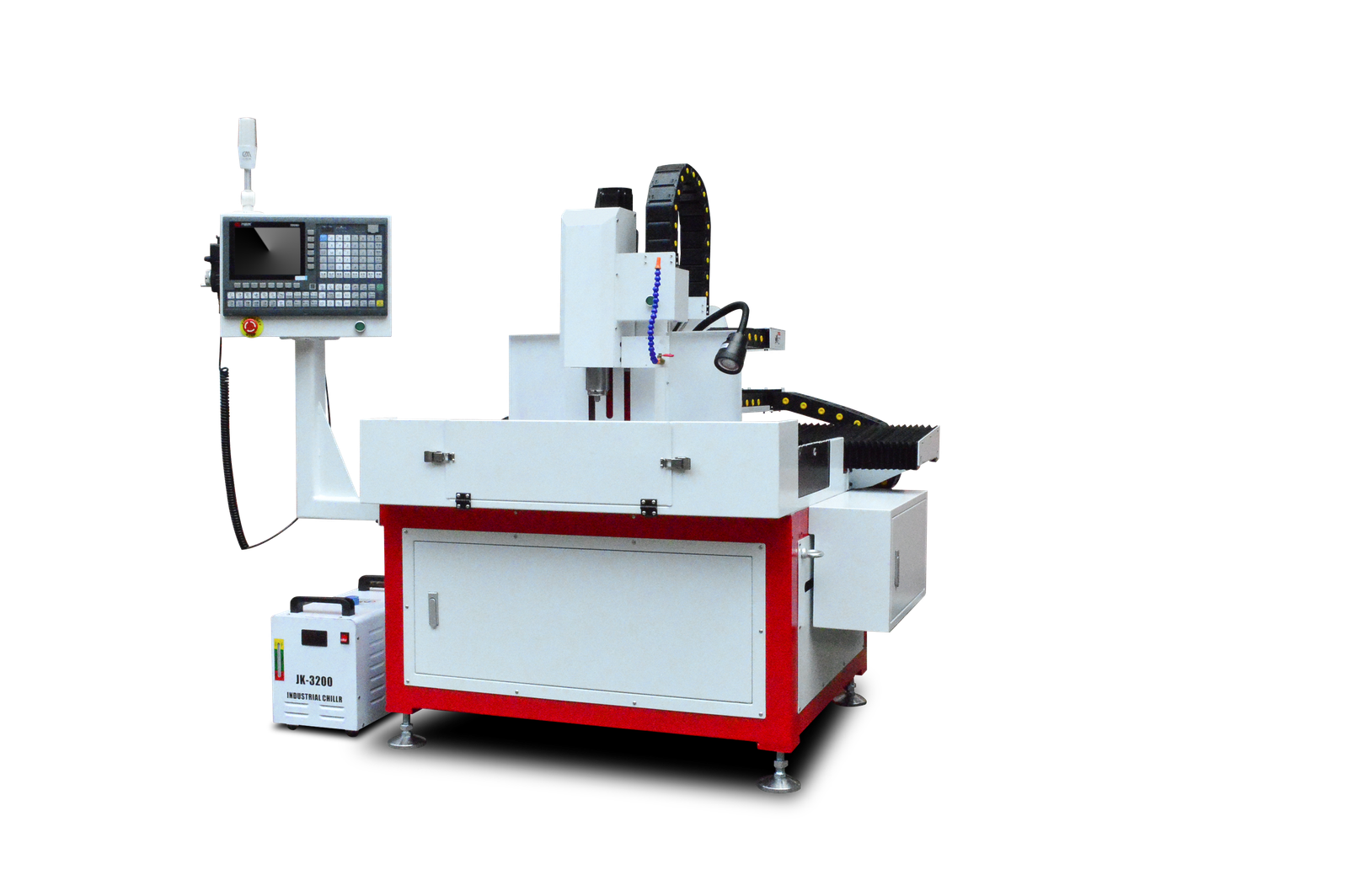

This is a micro-hole high-speed drilling machine equipped with a CCD visual positioning system, which is specially designed for micro-hole processing of shaft products. The effective processing stroke is X-axis 400*Y-axis 300*Z-axis 200mm*A-axis rotation 360 degrees, which is suitable for products that require multi-angle automatic indexing and automatic positioning drilling.
The CNC system adopts the Taiwan Delta brand, with the same brand absolute value servo motor, and the Delta CCD industrial vision system is optional. The relative position of the product is automatically scanned and corrected by CCD, and the numerical value is automatically entered into the machine tool coordinates after calculation, so that the product can be accurately processed at multiple angles to meet the customer’s automated production.
The fourth axis uses a harmonic servo turntable and is equipped with a pneumatic chuck to achieve automatic and rapid clamping of the workpiece, and cooperates with the robot loading and unloading rhythm, which is convenient and fast while ensuring processing accuracy. The spindle adopts a 60,000-rpm high-speed and high-precision spindle, which not only has high processing efficiency, but also has a good guarantee for tool wear.
The straight-row tool magazine has 4 tools in total, supports automatic tool change, and can complete multiple processes with one clamping.
The screw guide rails of the whole machine are made of Taiwan Hiwin brand, with good precision retention. Each transmission shaft is equipped with an automatic lubricating oil pump, and the system is lubricated regularly and quantitatively, without manual maintenance.
Before the equipment leaves the factory, the whole machine is tested for accuracy with an API laser laser instrument imported from the United States and compensated. After compensation, the accuracy reaches 0.01mm. The equipment is delivered to your door, and free door-to-door installation, commissioning and training are provided.
