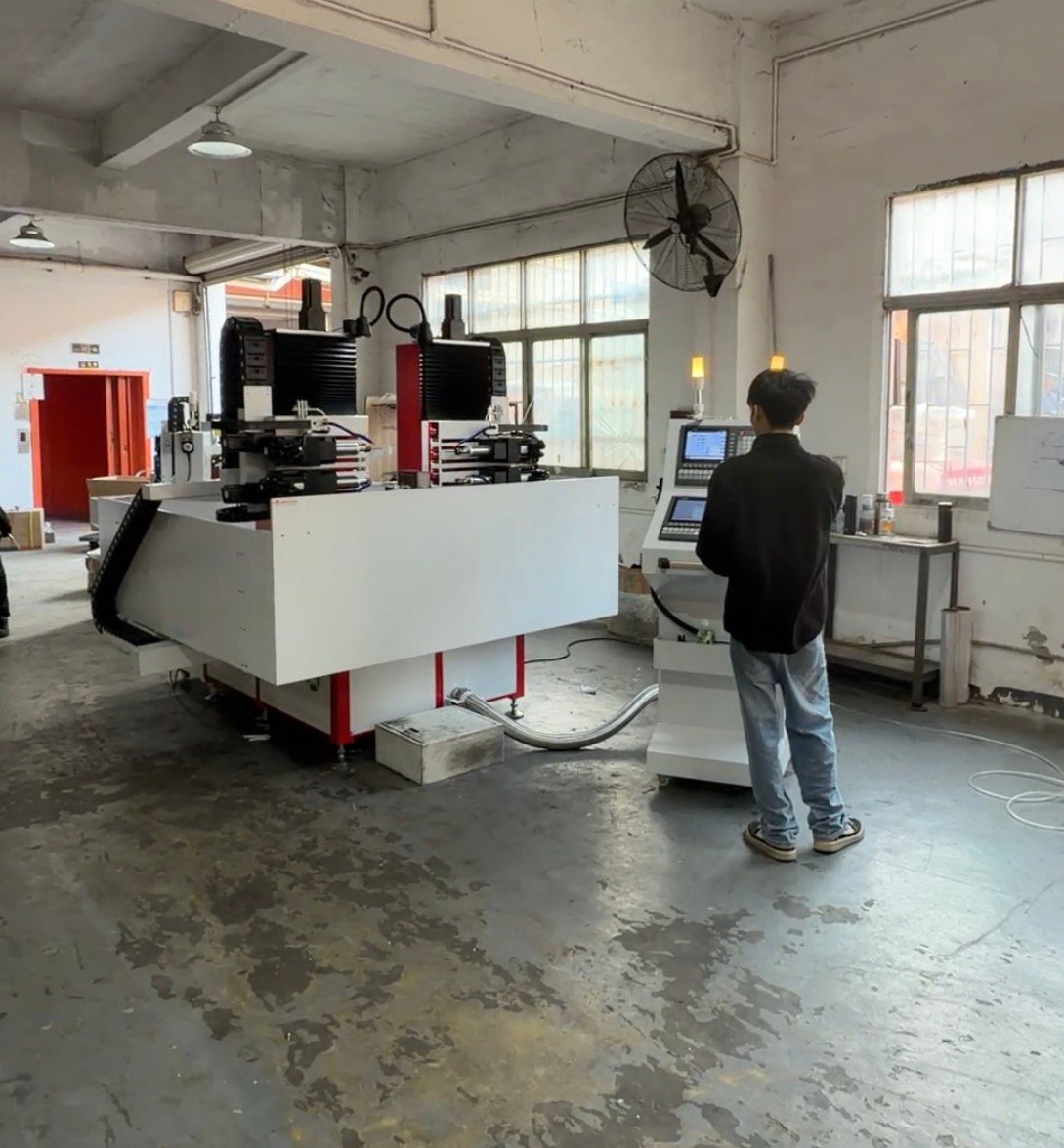

horizontal CNC double-sided simultaneous drilling and tapping all-in-one machine

This is a horizontal CNC double-sided simultaneous drilling and tapping all-in-one machine. Equipped with two sets of drilling and tapping mechanisms, it can simultaneously process both sides of a workpiece, doubling the machining efficiency while effectively ensuring product precision.

The effective machining stroke of the three axes is X-axis 800mm * Y-axis 350mm * Z-axis 200mm. A T-slot worktable is designed to facilitate the clamping of workpieces with different shapes.

The spindle adopts a precision servo mechanical spindle, which meets the processing requirements of steel/aluminum workpieces and can be used for drilling, chamfering, and tapping operations.

The movable independent electric cabinet integrated system box adopts two sets of CNC systems to independently control the two drilling and tapping mechanisms. It can operate independently or simultaneously according to production needs, flexibly meeting the multi-sided processing requirements of workpieces.

The Duomi CNC system supports CAD file import to automatically generate machining programs, eliminating the need for professional programmers. It is simple and easy to operate, and the system can store tens of thousands of machining programs.

The entire machine transmission adopts absolute value servo motors, and the lead screws and guide rails are selected from HIWIN (Taiwan) brand. Each axis of the machine tool is equipped with an automatic lubrication system, which can perform timed and quantitative lubrication, replacing manual maintenance.

All Duomi drilling and tapping equipment can be equipped with mainstream automatic loading and unloading mechanisms on the market, reducing personnel input. The equipment includes door-to-door delivery, as well as on-site technical installation, commissioning and training services.
