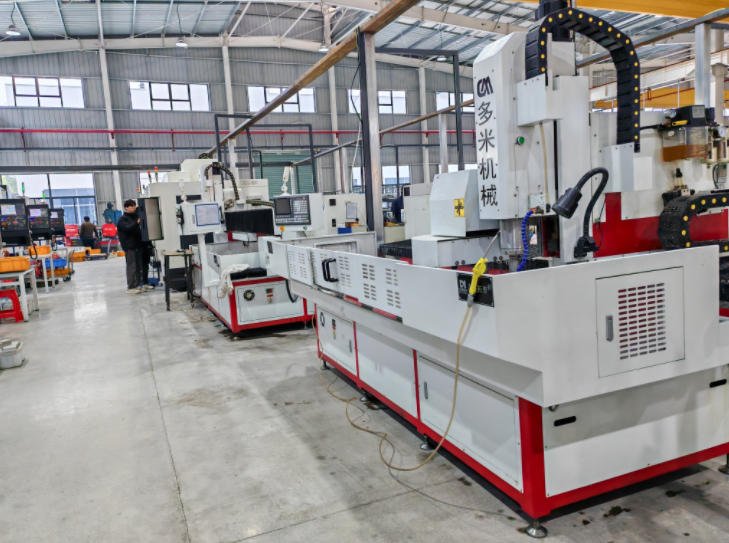

Comprehensive Guide to Common Issues and Solutions for CNC Drilling and Tapping Machines

　　I. Mechanical Operation Failures: Accurate Troubleshooting from “Abnormal Noise” to “Unstable Operation”

　　(1) Machine Fails to Start or Shuts Down Suddenly

　　It is frustrating when a CNC drilling and tapping machine fails to respond when you expect it to start efficient work. At this point, we first check the power supply and circuits. Start with the simplest: check if the power switch is damaged, just like checking the light switch when a home light stops working, then see if the power indicator lights up normally. If there is no power response at all, contact a professional electrician immediately. They will carefully inspect the wiring connections, especially the air switch, which is prone to poor contact due to moisture or overload. If necessary, aging wires or circuit breakers must be replaced.

　　Component jamming or loosening can also cause similar issues. For example, if the drill chuck is loose, the drill bit cannot transmit power properly—simply tighten it clockwise with a special tool. If the motor starts but the drill bit “refuses to work,” the drive belt is likely faulty (either broken or slipping). Replace it with a suitable belt and adjust the tension to restore normal power transmission.

　　(2) Excessive Vibration or Abnormal Noise During Operation

　　Excessive vibration or noise from a CNC drilling and tapping machine during operation is like a broken car racing down the road—it not only affects machining accuracy but also causes annoyance. Deformation of the workpiece is a common cause. If irregular chatter marks appear on the workpiece surface, stop the machine immediately to check if the material is bent or warped. Flattening deformed workpieces is crucial; otherwise, material will damage tools and compromise precision.

　　Component wear or installation issues also require attention. Abnormal noise from a high-speed motor often indicates insufficient lubrication or worn bearings. Add high-temperature grease as specified in the manual; if the noise persists, disassemble the motor to inspect the bearings and replace them if necessary. For jamming or noise during tool changes, clean the tool magazine slots, check the fit accuracy between the tool holder and spindle taper hole, and perform taper grinding repairs if needed to ensure smooth tool changes.

　　II. Machining Accuracy Issues: Overcoming “Hole Position Deviation” and “Thread Defects”

　　(1) Inaccurate Drilling Position or Hole Diameter Deviation

　　Inaccurate drilling positions or hole diameter deviations are common precision issues in CNC drilling and tapping, directly affecting product quality and subsequent assembly. Let’s start with positioning system failures. Just as a car veers off course with faulty navigation, a machine tool with a malfunctioning positioning system will produce misaligned holes. Manually move each axis and check if the positioning accuracy meets factory standards. Cumulative positioning errors may indicate the need to recalibrate the origin switch or adjust servo motor parameters to “reset” the machine’s position.

　　Loose fixtures are another common cause of hole deviation. Fixtures act like “large clamps” to secure workpieces—if they loosen, the workpiece will shift during machining, leading to inaccuracies. Use a torque wrench to check fixture bolt torque, tighten them to the specified value, and ensure firm clamping to prevent workpiece movement during drilling.

　　Inappropriate tool selection also causes diameter deviations. Drill bits wear over time, similar to how a pencil tip thickens with use. Replace drill bits when their diameter wears by more than 0.02mm to avoid oversized holes. For deep hole drilling, ordinary bits may struggle—use extended bits with guiding functions to stabilize the drilling process. Adjust cutting parameters (e.g., reduce feed rate to 0.05–0.1mm/r) to prevent hole enlargement due to insufficient tool rigidity.

　　(2) Tapping Defects: Blunt Threads, Stripped Threads, and Broken Taps

　　Blunt threads (insufficient depth), stripped threads, and broken taps during tapping operations plague operators, reducing efficiency and risking workpiece scrap.

　　Blunt threads result from oversize pilot holes or undersize rods. Pilot hole diameters vary by thread 规格 —e.g., M6 threads typically require a 5.1mm pilot hole. Precisely calculate or reference tables to select the correct drill bit, and verify pilot hole size with go/no-go gauges to ensure complete thread formation.

　　Stripped threads often stem from dull taps or improper feed pressure. Taps act like “carvers” for threads; dull edges impair quality. Inspect tap edges after 50–100 holes and replace worn taps. During initial tapping, apply slight axial pressure to guide the tap (like gently accelerating a car), then maintain only rotational feed after 3–5 threads. Use emulsion or oil for lubrication to reduce cutting resistance and prevent stripping.

　　Broken taps are critical—like a broken pen tip rendering it useless. Chip clogging is the main cause, especially with tough materials like stainless steel, where chips accumulate and snap the tap. Reverse the tap every 2–3 threads to clear chips, and use spiral-fluted taps for efficient chip evacuation (like a “fast lane” for chips). If a tap breaks in the hole, try reversing it out; if unsuccessful, use an EDM machine to erode the fragment—never strike it, as this will damage the workpiece.

　　III. Control System and Hardware Failures: Solutions for “Program Errors” to “System Abnormalities”

　　(1) CNC System Alarms and Operational Errors

　　The control system is the machine’s “brain”—alarms disrupt operation. Programming errors (e.g., incorrect G-codes) confuse the machine, while coordinate overtravel triggers an emergency stop (like a car hitting a dead end). Consult the machine manual to check for coordinates exceeding travel limits. Tool radius compensation errors misalign tool paths—use “single-block mode” to execute programs step-by-step, identifying issues to ensure tool paths match workpiece coordinates (G54–G59).

　　Accidental modification of system parameters (like tampering with computer settings) impairs machine performance. Always back up parameters before operation (similar to backing up computer files). Restore factory settings using backup files if parameters are corrupted.

　　Servo motor issues are problematic:

　　Overheating alarms (like a fever) often result from blocked cooling fans. Clean dust from the motor housing and ensure fan airflow.

　　Loose encoder wires (the motor’s “nerves”) cause inaccurate position feedback—check connections.

　　”Step loss” (cumulative position deviation) requires calibrating servo gain parameters; replace damaged drives if necessary.

　　(2) Electrical and Hydraulic System Failures

　　Electrical and hydraulic systems are the machine’s “blood vessels” and “muscles”—malfunctions halt operation.

　　Total power tripping (like a sudden blackout) requires checking drive circuit pulses (normal amplitude: 12V). Replace drive modules if defective transistors cause thyristor misfiring.

　　Corroded air switch contacts in humid environments (like rust on metal) demand monthly insulation resistance checks with a megohmmeter. Replace switches if resistance drops below 2MΩ.

　　Cooling and lubrication failures cause major issues:

　　Spindle overheating (like a feverish head) often stems from insufficient coolant. Clean tank filters, inspect pump impellers for wear, and replace them to restore coolant circulation.

　　Poor guideway lubrication causes (like stiff joints). Set automatic lubrication to 30-minute intervals, use 32–46 viscosity ，and manually replenish oil if low. Clear blocked oil paths to ensure proper lubrication.

　　IV. Preventive Maintenance Guide: Tips to Reduce Failure Frequency

　　(1) Daily Maintenance “Three-Step Method”

　　Daily maintenance ensures long-term stability—like personal hygiene for machines.

　　Pre-shift inspection: Check lubricant levels (not below minimum), prepare coolant (1:20 dilution), test spindle rotation for smoothness, and idle axes for 5 minutes to warm up (like stretching before exercise).

　　In-shift monitoring: Watch ammeter readings (not exceeding 80% of rated current) and listen for abnormal noises (e.g., screeching or thudding). Pause machining and record alarm codes if issues arise.

　　Post-shift cleaning: Use compressed air to remove chips from the worktable and guideways, wipe the spindle taper hole with rust inhibitor, and return axes to mechanical origin before powering off.

　　(2) Key Periodic Maintenance Items

　　Monthly: Check ball screw grease; replenish lithium-based grease if low. Calibrate machine level with a spirit level (tolerance: ≤0.04mm/m) to prevent uneven guideway wear.

　　Quarterly: Replace hydraulic oil with 46# anti-wear oil and clean the tank. Use a laser interferometer to test axis positioning accuracy (tolerance: ±0.02mm/1000mm); perform pitch compensation if out of range.

　　Annually: Tighten electrical connections, re-plug CNC cables with anti-static measures, and commission professional upgrades to CNC software for optimized performance (like updating a phone’s OS).

　　V. Emergency Handling: Responding to Broken Tools, Electric Leaks, etc.

　　(1) Tool Breakage and Flying Debris

　　Tool breakage is dangerous—act quickly:

　　Press the emergency stop button to halt the machine immediately.

　　Wear gloves to safely clear debris from the workspace.

　　Inspect the tool magazine and spindle for damage before retooling and resuming operation.

　　(2) Equipment Leakage Alarms

　　Leakage is a hidden hazard:

　　Cut off the main power immediately.

　　Use a multimeter to test resistance between the motor housing and ground (normal: <4Ω). Replace the motor or repair ground wiring if insulation fails.

　　Never operate live equipment—prioritize safety.

　　Conclusion: Keeping CNC Drilling and Tapping Machines in “Top Condition”

　　Mastering these troubleshooting and maintenance methods minimizes downtime. Maintain a Equipment Fault Log to record issues, solutions, and replaced parts, building custom maintenance expertise. For further support, contact manufacturers for tailored solutions. (Note: Refer to the machine manual for specific parameters; consult 原厂 technicians for complex faults.)
