How to Maintain the Machining Accuracy of CNC Drilling and Tapping Machines Long-Term

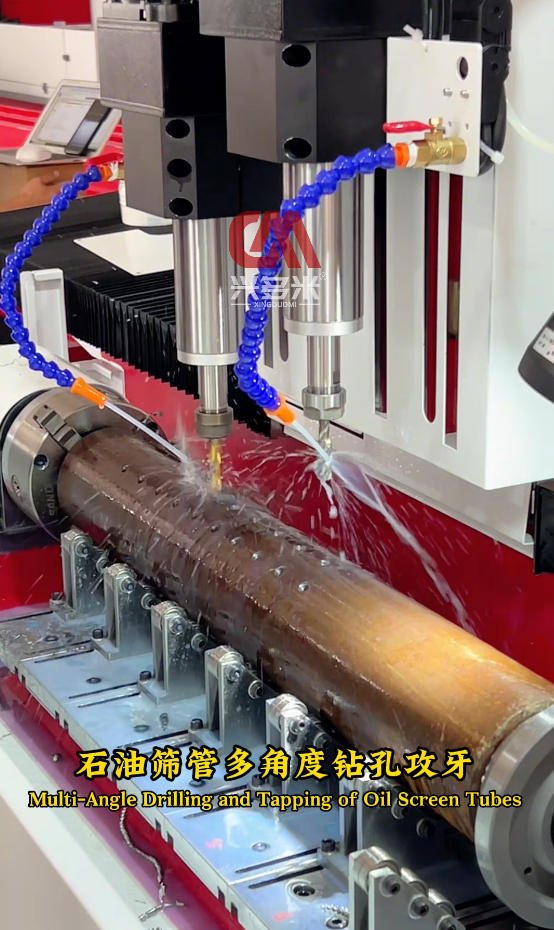

To maintain the machining accuracy of CNC drilling and tapping machines over the long term, a full-cycle management system must be established across four core dimensions: mechanical maintenance, system calibration, operational standards, and environmental control. This system should cover every stage of the equipment’s lifecycle—from use and maintenance to monitoring and optimization. Below are 7 key steps to implement this:

I. Strengthen the Mechanical Foundation: Ensure Stability and Low Wear of Core Components

The accuracy of CNC drilling and tapping machines depends on the rigidity and fitting precision of the machine base, guide rails, and transmission system—these form the “foundation” of long-term accuracy.

1. Long-Term Stability of the Machine Base and Foundation
   • During initial installation, ensure the concrete foundation meets strength requirements (≥C30) and include anti-vibration trenches (filled with sound-absorbing cotton or rubber) to prevent vibration from other workshop equipment from transferring to the machine.
   • Check the machine base level every 6 months using a level gauge (accuracy: 0.02 mm/m). Measure at both ends and the middle of the X/Y/Z-axis guide rails; if the level deviation exceeds 0.05 mm/m, fine-tune using the adjustment bolts at the bottom of the base to avoid base deformation caused by uneven long-term stress.
2. Precision Maintenance of the Transmission System (Ball Screws, Guide Rails)
   • Lubrication Management: Strictly follow the equipment manual to select grease (e.g., lithium-based grease) or lubricating oil (ISO VG32/46). Check the lubrication system oil level before starting the machine daily; manually clean iron chips from the guide rail covers weekly (to prevent chips from entering guide rail gaps and causing scratches); replace the lubrication system filter every 3 months.
   • Wear Compensation: Ball screws develop backlash (which affects positioning accuracy) with long-term use. Test backlash every 6 months using a dial indicator (accuracy: 0.001 mm)—attach the indicator to the spindle, manually move the X/Y axes to different positions, and record backlash values. If backlash exceeds 0.01 mm, correct it via the CNC system’s “backlash compensation parameters” (e.g., Parameter 1851 in FANUC systems).
   • For localized scratches on guide rails (which cause movement jams), lightly polish the area with fine sandpaper (800-grit or finer); replace guide rail sliders if damage is severe.

II. Strictly Control Cutting Tools and Fixtures: Avoid Accuracy Loss in “Direct Machining Components”

Tool wear and fixture loosening are common causes of machining accuracy fluctuations. A system for “tool life management + regular fixture calibration” must be established.

1. Precision Control of Cutting Tools
   • Tool Presetting and Life Monitoring: Use a tool presetter (accuracy: 0.0005 mm) to pre-set tool length and radius compensation values, eliminating the need for repeated test cuts on the machine. Track the number of machining cycles per tool via the CNC system (e.g., replace a tapping tool after 500 holes) or install a “tool wear monitor” (to detect real-time changes in cutting force and trigger an alarm when limits are exceeded).
   • Maintenance of Tool Holders and Collets: Clean the taper surfaces of BT30/BT40 tool holders with alcohol weekly to prevent poor taper fitting (which affects spindle concentricity) caused by chips or oil. Replace collets for drill chucks or tap holders if the clamping clearance exceeds 0.01 mm—this prevents “radial runout” of the tool during machining.
2. Regular Calibration of Fixtures
   • After installing workholding fixtures, use a coordinate measuring machine (CMM, accuracy: 0.001 mm) to test the flatness of the positioning datum (≤0.005 mm/100 mm) and the coaxiality of locating pins (≤0.003 mm).
   • Check the tightening torque of fixture bolts (per the equipment manual, typically 25–40 N·m) after every 500–1,000 workpieces. This prevents workpiece “clamping deviation” caused by bolt loosening from long-term vibration.

III. Optimize the CNC System: Ensure Parameter Stability and Motion Accuracy

The CNC system is the “brain” of the equipment. Parameter drift and degraded servo performance directly affect positioning accuracy and machining consistency—regular calibration and maintenance are essential.

1. Backup and Calibration of Core Parameters
   • Back up CNC system parameters (including positioning compensation, servo gain, and rigid tapping parameters) monthly to avoid loss due to system failures or incorrect operations.
   • Optimize servo parameters quarterly: Use the system’s built-in “servo adjustment tool” (e.g., “Servo Adjuster” in Mitsubishi systems) to test the “positioning accuracy” and “repeatability” of the X/Y/Z axes. If values exceed equipment standards (typically ≤0.01 mm for positioning accuracy, ≤0.005 mm for repeatability), adjust servo gain parameters (e.g., position loop gain, speed loop gain) to reduce motion “overshoot” or “lag.”
2. Adaptation of Rigid Tapping Parameters
   • Tapping accuracy (pitch error, thread perpendicularity) depends on the precise matching of “spindle speed–feed rate” (feed rate = speed × pitch). Optimize parameters based on material type (e.g., aluminum, steel, stainless steel) and tap type (machine taps, roll taps):
     • Example: For machining M8×1.25 holes in 45# steel, recommend a spindle speed of 800–1,000 rpm and a feed rate of 1,000–1,250 mm/min. Enable the system’s “tapping retraction compensation” to prevent thread scratches when the tap is retracted.

IV. Standardize Daily Operations: Reduce Accuracy Loss Caused by Human Error

Improper operation accelerates precision degradation. A standardized operating procedure (SOP) must be established.

1. Standardized Workpiece Clamping
   • Clean the workpiece’s positioning surface and the fixture’s datum surface (remove burrs and oil) before clamping to avoid clamping errors caused by “point contact.”
   • Apply uniform clamping force (controlled with a torque wrench) to prevent workpiece deformation from over-clamping (e.g., 5–10 N·m for thin-plate workpieces) or workpiece displacement from insufficient clamping.
2. Control of Load and Stroke
   • Avoid long-term full-load machining (e.g., drilling diameters exceeding 80% of the machine’s maximum drilling capacity) to reduce fatigue wear on the spindle and guide rails.
   • After starting the machine each day, perform “empty-stroke warm-up” (move the X/Y/Z axes through their full stroke 2–3 times). Begin machining only after the spindle temperature stabilizes (temperature difference ≤5°C) to avoid thermal deformation errors caused by temperature changes.

V. Control Environmental Factors: Eliminate External Interference with Accuracy

Temperature, humidity, and dust indirectly affect equipment accuracy—workshop environmental management must be optimized.

1. Temperature Control
   • Maintain workshop temperature at 20±2°C (temperature fluctuation ≤3°C/h). Avoid direct sunlight on the machine (install sunshades if needed) or direct air conditioning airflow onto the machine, which prevents thermal deformation of the base and spindle due to temperature differences.
   • If workshop temperature cannot be stabilized, enable the machine’s “spindle temperature control” function (available on some high-end models), which uses an oil cooling system to maintain stable spindle temperature.
2. Humidity and Dust Control
   • Maintain workshop relative humidity at 40%–60%. Excess humidity can cause guide rail rust and electrical component short circuits; low humidity can generate static electricity that attracts dust.
   • Clean the machine’s electrical cabinet regularly (quarterly) using compressed air (pressure ≤0.4 MPa) to remove dust. This prevents poor system heat dissipation and parameter instability caused by dust accumulation.

VI. Conduct Regular Accuracy Testing: Establish an “Early Warning–Correction” Cycle

Routine maintenance alone cannot fully prevent precision degradation. Professional testing tools must be used to quantify accuracy regularly and address issues promptly.

1. Routine Testing (Monthly)
   • Use a dial indicator + magnetic base to test spindle radial runout (≤0.005 mm) and end face runout (≤0.003 mm). If values exceed limits, inspect spindle bearing wear and replace bearings if necessary.
   • Perform test machining with a “standard test piece” (e.g., a 45# steel block) to check drill hole tolerance (e.g., ±0.01 mm) and tapped thread accuracy (tested with thread gauges, meeting 6H/7g standards). If deviations occur, investigate mechanical issues, tool problems, or parameter errors.
2. Professional Testing (Annually)
   • Hire a third-party service to test the positioning accuracy, repeatability, and backlash of the X/Y/Z axes using a laser interferometer (accuracy: 0.0001 mm). Generate an accuracy report and adjust system compensation parameters based on the results.
   • Use a ballbar to test the machine’s “dynamic accuracy” (e.g., circular interpolation accuracy). This evaluates the coordination of the servo system and transmission system, preventing dynamic errors from affecting the accuracy of complex workpieces.

VII. Address Faults Promptly: Prevent Minor Issues from Escalating

If accuracy anomalies occur (e.g., oversize holes, thread damage), stop operation immediately to troubleshoot and avoid worsening the problem:

1. First, inspect “consumable parts”: tool wear, loose collets, or deformed locating pins.
2. Next, check “mechanical issues”: guide rail lubrication, ball screw backlash, or spindle bearing wear.
3. Finally, verify “system parameters”: positioning compensation, servo gain, or tapping parameters.
   After repairs, re-run test cuts to confirm accuracy is restored before resuming production.

Summary: Core Logic for Long-Term Accuracy Maintenance

The accuracy of CNC drilling and tapping machines is a combination of “mechanical rigidity + system stability + operational standardization.” A closed-loop management process—preventive maintenance (lubrication, calibration) + process control (operation, environment) + regular testing (quantification, correction)—must be implemented. Avoid the mistake of “prioritizing use over maintenance”; this approach can extend the machine’s accuracy lifespan by 3–5 years.
