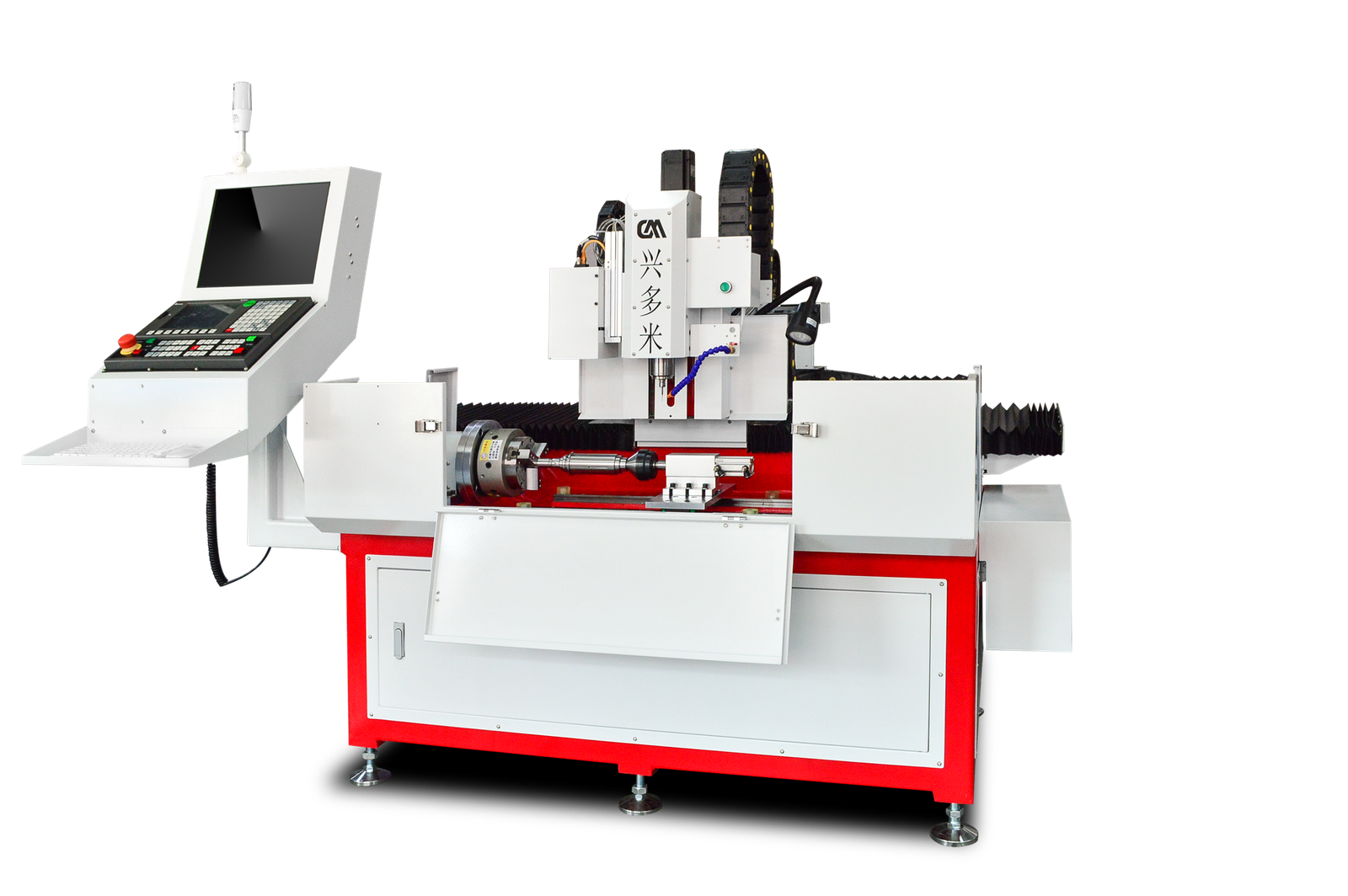

DNC-630HD N4(R1) CCD High-Precision Visual Four-Axis CNC Drilling Machine, equipped with a CCD visual positioning system for high-speed micro-hole drilling, specifically designed for micro-hole processing of shaft-type products. It features an effective processing travel of X-axis 400 mm × Y-axis 300 mm × Z-axis 200 mm × A-axis rotation 360 degrees, making it suitable for products requiring multi-angle automatic indexing and automatic positioning drilling.
The CNC system adopts the Taiwan Delta brand, paired with the same brand’s absolute value servo motors, and optionally equipped with the Delta CCD industrial vision system. The CCD automatically scans and corrects the relative position of the product, calculates the values, and automatically inputs them into the machine tool coordinates, enabling precise processing at multiple angles to meet customer automation production requirements.
The fourth axis uses a harmonic servo rotary table, paired with a pneumatic chuck, to achieve automatic and rapid clamping of workpieces. This coordinates with the robotic arm’s loading and unloading cycle, ensuring both convenience and processing accuracy.
The spindle uses a high-speed, high-precision spindle with a speed of 60,000 RPM, not only improving processing efficiency but also effectively protecting tool wear.
The linear tool magazine holds four tools and supports automatic tool changing, enabling multiple machining operations to be completed with a single setup.
The machine’s ball screws and guideways are from the Taiwanese brand HIWIN, ensuring excellent precision retention. Automatic lubrication pumps are installed on all drive shafts, with the system dispensing oil at set intervals and quantities, eliminating the need for manual maintenance.
